Overview
With excellent quality and affordable price, stainless steel spool wire from CIVMATS China enjoys immense popularity in international market. It merits a special article to benefit more businesses who are yet to find the right one to work with. Now let us explore and discover through the case of stainless steel spool wires exported from China to Southeast Asia.
What is Stainless Steel Spool Wire?

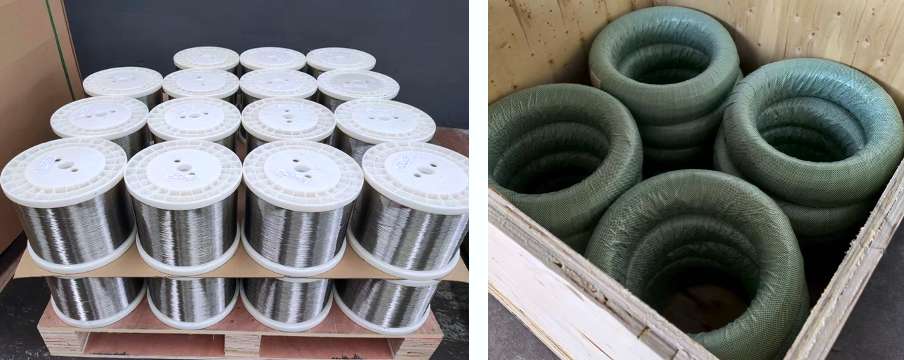

Stainless steel spool wire mainly refers to diameter-1.0mm-and-below stainless steel annealed soft wire wound round ABS new spools either DIN160 or DIN200. Bigger diameters need customization at extra cost, hence stainless steel wires over 1.0mm are mostly supplied in bundles without spool. Below is the photo which gives an intuitive comparison between stainless steel spool wires and stainless steel wires in bundle.
The Main Standards Applicable to Stainless Steel Spool Wire
For international markets, the most popular specifications applicable to stainless steel spool wire are listed as below,
ASTM A580: Standard Specification for Stainless Steel Wire. Except the free-machining types, ASTM A580 covers the most. Due to its wide coverage of shapes, diameters and conditions, it is commonly referenced.
JIS G4309: Standard Specification for Stainless Steel Wires. In comparison with ASTM A580, it is more detailed. The standard includes stainless steel wires produced using stainless steel wire rods and heat resisting steel wire rods containing 10.5% or more chromium and excludes stainless steel wires for springs, cold heading and cold forging.
ASTM A478: Standard Specification for Chromium-Nickel Stainless Steel Weaving and Knitting Wire. It covers mainly 300-series (or austenitic) round stainless steel wire intended for weaving and knitting.
ASTM A555: Standard Specification for General Requirements for Stainless Steel Wire and Wire Rods. This standard should be followed when tolerances of stainless steel wires are not specified by clients.
Having mentioned the main standards, it’s worth mentioning the most welcomed stainless steel grades. 304, popular in any material shape, claims predictably the lion’s share in terms of austenitic grades. The huge consumption of 410 stainless steel wire 0.13mm for making scrubbers makes grade 410 an unignorable existence in international market as well. Nonetheless, CIVMATS China can customize grades of stainless steel spool wire per your exact requirement.
Features & Applications of Stainless Steel Spool Wire
Stainless steel spool wire features bright shiny finish, good corrosion resistance, excellent strength and high elongation. The smallest diameter can reach 0.013mm. It is widely used for civil projects as much as for heavy industries, including but not limited to textiles, aerospace, pharmaceutical, biochemistry, petroleum, communications, and automobiles.
While the above applications might sound a bit remote in supply chain from the initial raw material supply, the key areas where stainless steel spool wires are closely linked are stainless steel wire mesh weaving, stainless steel wire rope manufacturing, stainless steel binding wire, stainless steel flexible hoses and stainless steel scrubbers manufacturing.
Stainless Steel Spool Wire Exported to Southeast Asia
CIVMATS stainless steel spool wires are of stably high quality and affordable prices, which can be justified by repetitive orders from our old clients from Southeast Asia.
Client Information: Confidential
Order Information: Stainless Steel Spool Wire
Standard: JIS G4309
Grade: SUS304
Diameter: 0.25mm, 0.30mm, 0.36mm, 0.40mm, 0.60mm;
Delivery Condition: W1
Spool: DIN200
Technical Data is presented as below table,
| JIS G4309 SUS304 | |||||||
| Chemical Compositions (%) | |||||||
|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Ni | Cr | N |
| ≦0.08 | ≦1.00 | ≦2.00 | ≦0.045 | ≦0.030 | 8.00-10.50 | 18.00-20.00 | / |
| Mechanical Properties | |||||||
| Wire Diameter | Applicable to | Tensile Strength | Elongation | ||||
| mm | mm | N/mm2 | % | ||||
| >0.16-0.50 | 0.25, 0.30, 0.36, 0.40 | 610-860 | ≧20* | ||||
| >0.50-1.60 | 0.60 | 570-820 | ≧30* | ||||
| Remark: Elongation can achieve 35% minimum for the above by CIVMATS China | |||||||

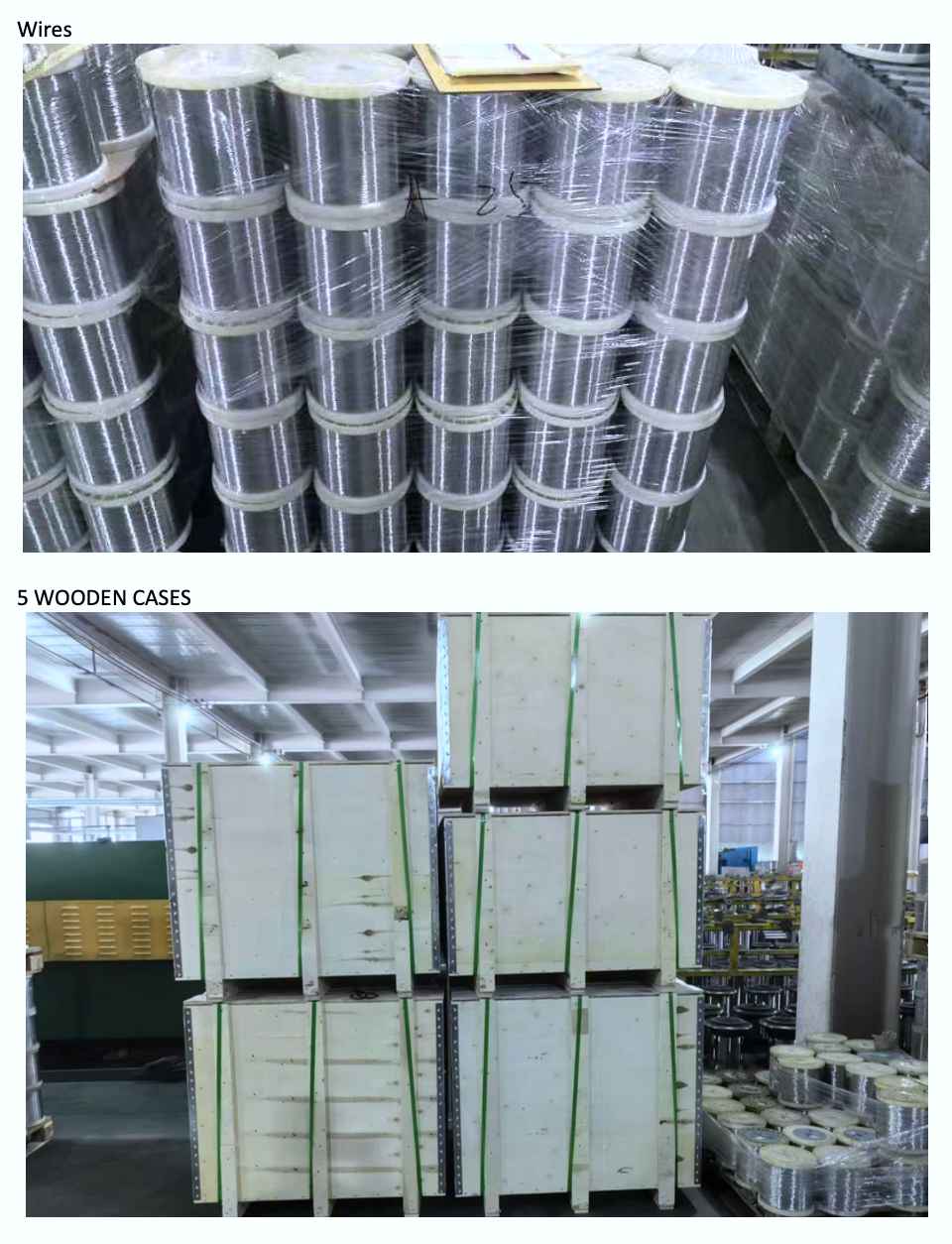

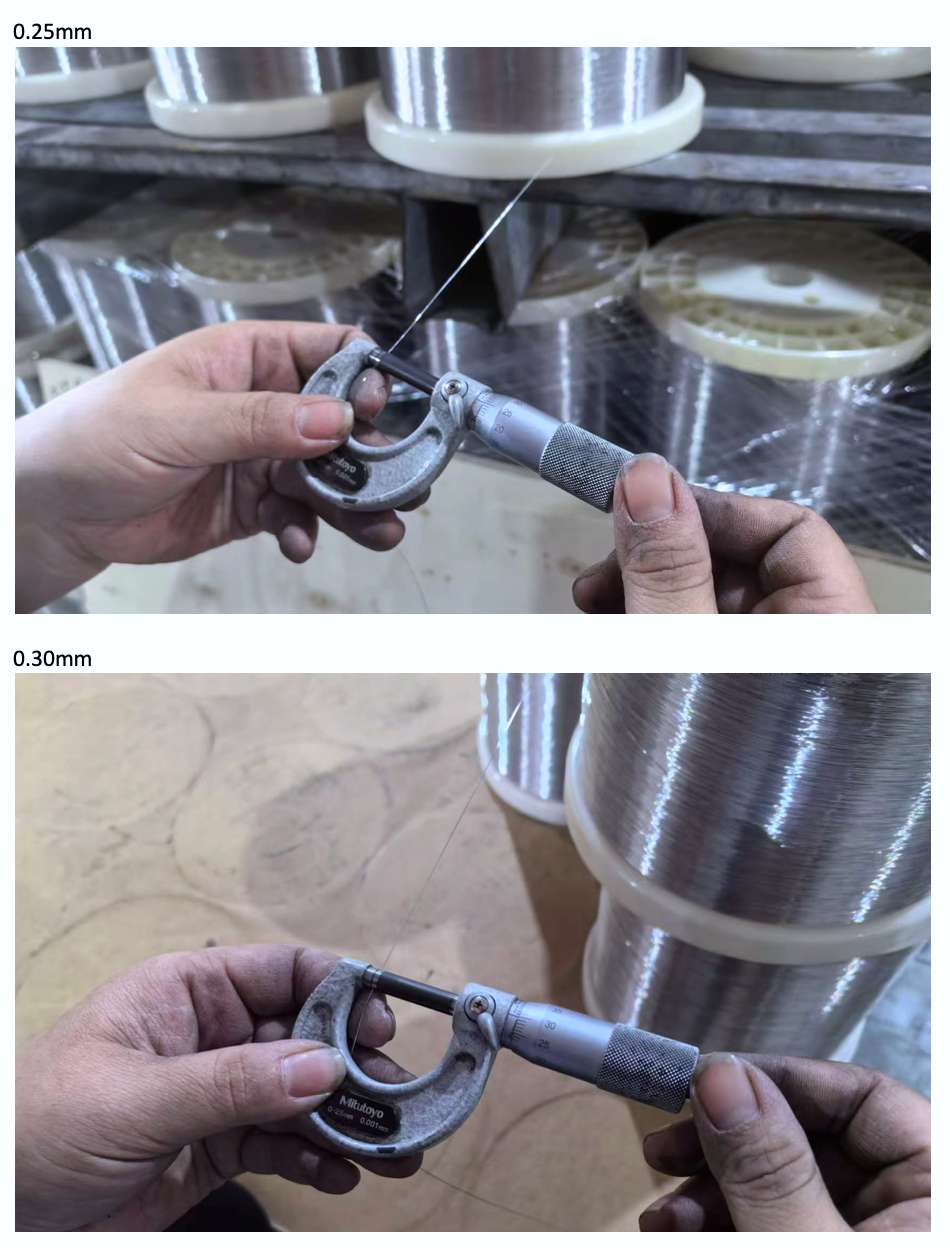

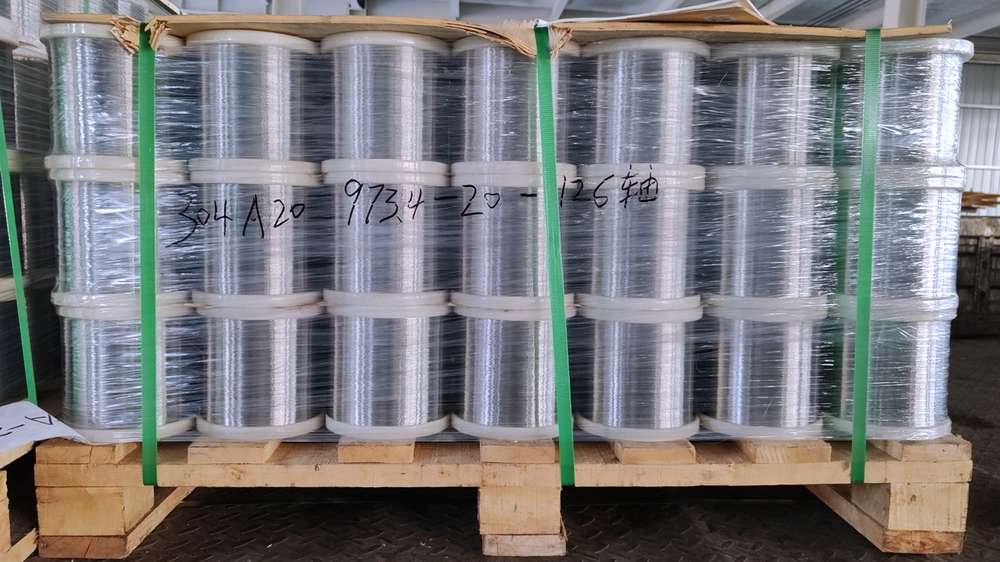

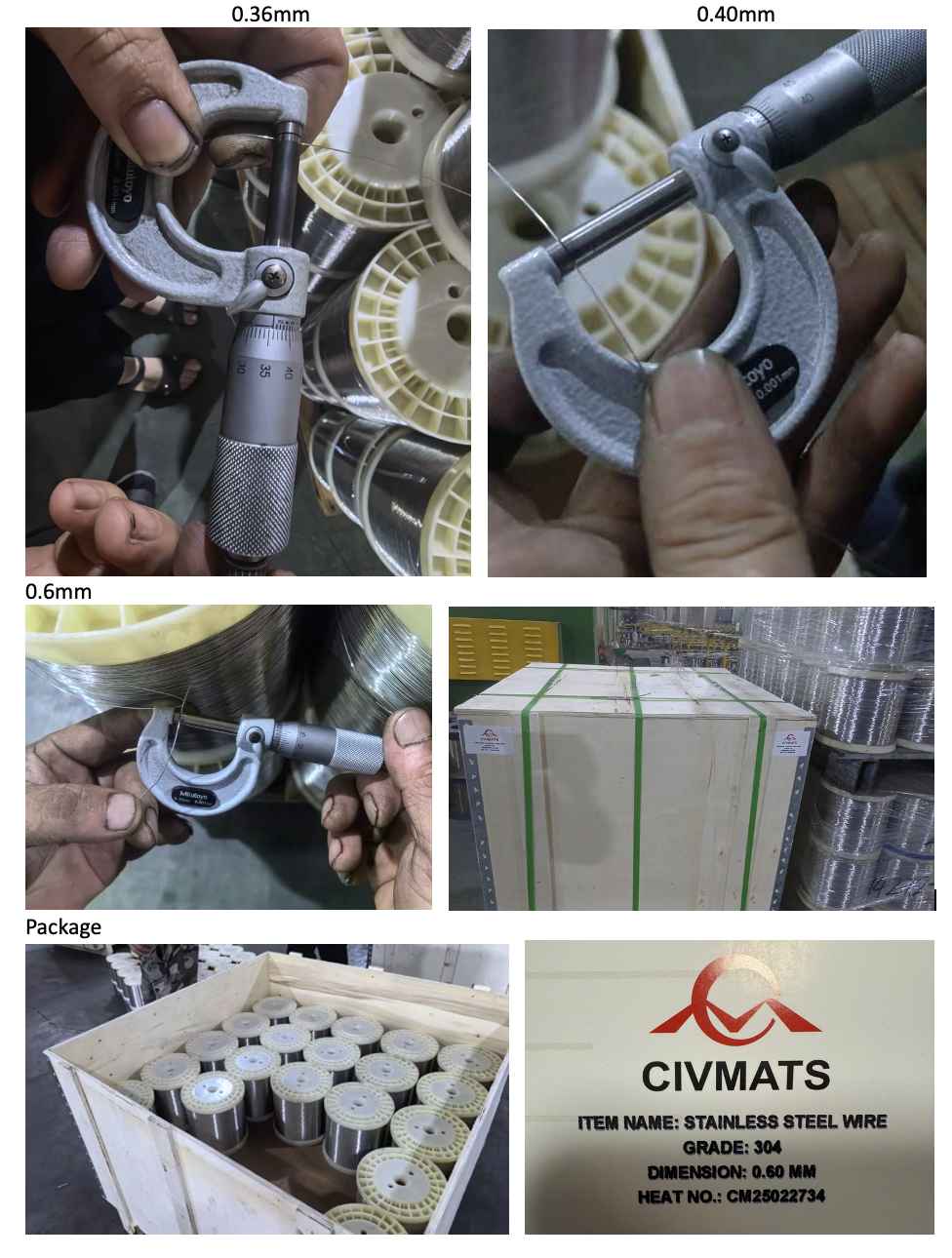

Photos of previous exports are exhibited for review.
Where to Buy Good Quality Stainless Steel Spool Wire in China?
If you are looking for good quality stainless steel spool wire from China, CIVMATS are always here for you. Reliable quality and good price calculated per net weight (excluding spool weight as well)! Apart from 400 series, new white spools DIN160 or DIN200 are used by default.
Try stainless steel spool wire from CIVMATS China and that trail order will surely bring you back whenever renewed demand rises again. You try and you’ll know. Choose CIVMATS, choose reliability and safety from China.
